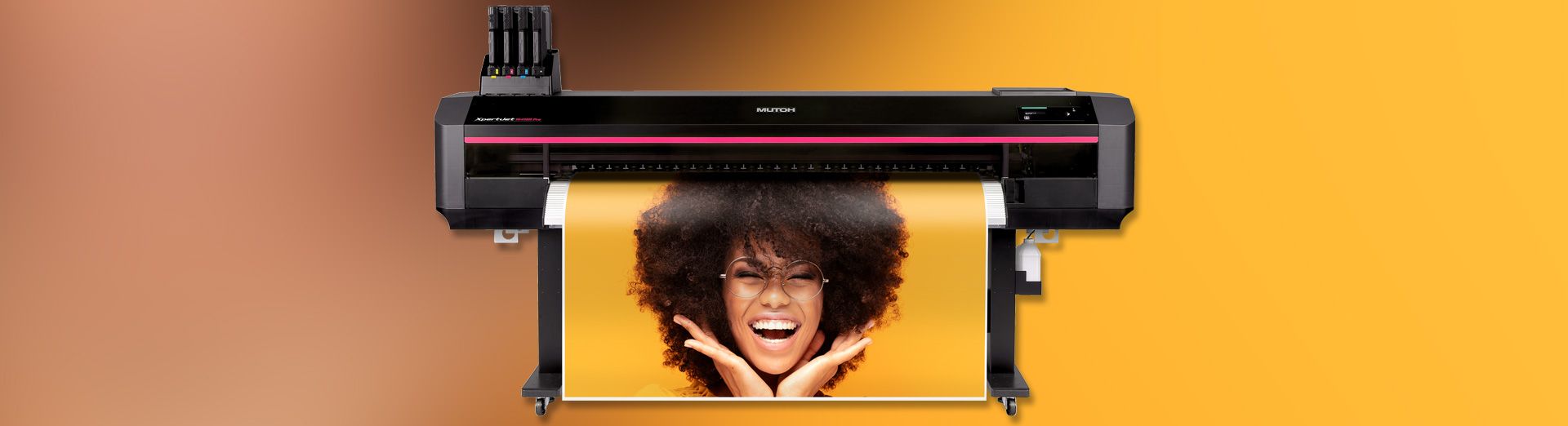

Mutoh XPJ-1641SR Pro Vinyl Printer
Made in Japan for professional-grade eco-solvent vinyl printing.
Designed for professionals and crafted with renowned made-in-Japan quality, the Mutoh XpertJet 1641SR Pro 4-colour eco-solvent printer is the ideal choice for vehicle wrappers, sign makers, and print businesses.
Powered by the AccuFine printhead, it combines outstanding print quality with impressive productivity, while remaining remarkably easy to operate despite its high-end specifications.
Incorporating Mutoh’s unique automation technologies, the XPJ-1641SR Pro delivers consistently superior results with minimal user intervention across a wide variety of media – from vinyl and banners to canvas and beyond.
The "GO-TO" Printer for Signage Professionals
The premium print quality and ease of use of the XpertJet-1641SR Pro has to be seen to be believed. The Mutoh XPJ-1641S Pro is the "go-to" printer that sets the standard and is the foundation within busy sign shops. Easily produce vibrant and high detailed custom stickers, graphics, and wraps all day, everyday.
Mutoh XPJ-1641SR Pro Features
DropMaster2
Automatic alignment of ink drops in bi-directional print modes allowing for high-speed printing with high detail.
Feed Master
Automatic calibration of media feed to ensure not banding between media types.
Media Tracker
Print a barcode before removing the media. Scan the barcode in when loading the media again to recognise the remaining media.
Nozzle Area Select
In the event of block nozzles not restoring, printing can continue using only the available nozzles.
Variable Head Height
Reduce the risk of head strike and maintain the highest quality print with the 4 stage head height adjustment.
MS41 Ink
GREENGUARD Gold certified ink delivers outstanding colour while allowing you to install printed graphics in high-sensitive environment like hospitals, childcare facilities etc.
Take-Up
Motorised take-up unit comes as standard.
RIP Software
Driven by Mutoh's own award-winning, easy to use RIP software VerteLith.

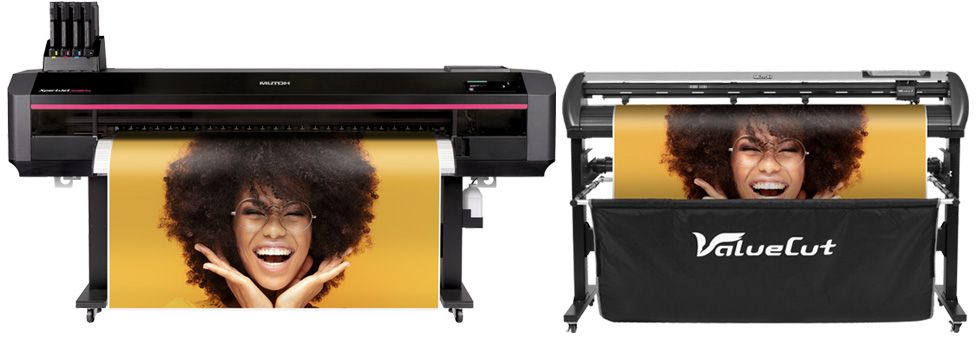

Print & Cut at the Same Time!
Pair the Mutoh XpertJet-1641SR Pro printer with the Mutoh VC2 cutter for a seamless, high-speed print-and-cut workflow that turns ideas into premium stickers, labels, and signs. Together, this perfect duo delivers continuous production, letting you churn out professional-grade, durable prints on vinyl, banner, and canvas.
| Print method | On-demand piezo drive system |
|---|---|
| Head height | Low 1: 1.5mm, Low 2: 2.0mm, Middle: 2.5mm, High: 4.0mm |
| Number of heads | 1 |
| Max. roll width | Maximum: 1,625mm, Minimum: 500mm |
| Max. media thickness | Low1: 0.3mm, Low2: 0.8mm, Middle: 1.3mm, High: 2.8mm * 1mm or less is recommended. |
| Media diameter | Φ200 mm or less |
| Core diameter | 2 inches or 3 inches |
| Max. media weight | 30kg or less |
| Max. printable width | 1,615mm |
| Max. print length | 1,500m |
| Ink type | MS41 |
| Colour | 4-Color (Black, Cyan, Magenta, Yellow) |
| Ink volume | 1000ml bag/300ml bag |
| Print resolution | Maximum 1200dpi |
| Interface | Gb-Ethernet（1000BASE-T) |
| Power supply | Voltage: AC 100V～120V ±10% / AC 200V～240V ±10% Frequency: 50/60Hz ±1Hz |
| Operational environment | Temperature: 20℃～32℃ Humidity: 40%～60% No condensing |
| Accuracy guaranteed | Temperature: 22℃～30℃ Humidity: 40%～60% No condensing |
| Power consumption during operation | AC100V～120V/AC200V～240V, 1100W or less |
| Power consumption sleep mode | AC100V～120V/AC200V～240V, 30W or less |
| External dimensions (W) x (D) x (H) | Printer with stand: 2,770mm x 895mm x 1,428mm (when cover closed) / 1,527mm (when cover opened） When ink case is installed: 2,770mm x 895mm x 1,611mm |
| Weight | Printer: 141kg Stand: 32kg |
| RIP software | VerteLith (MUTOH genuine RIP software) |
