Mutoh 1638UR

Overview

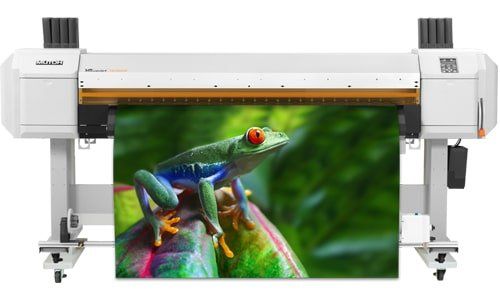

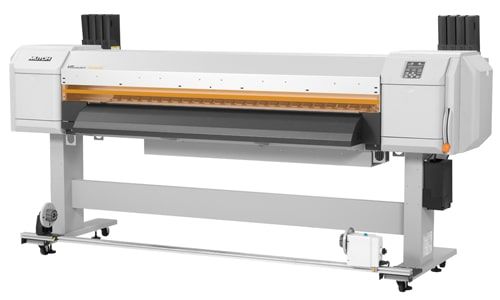

Expand your range of applications and produce real added value graphics with the ValueJet VJ-1638UR roll-to-roll wide format UV LED printer. It is a 162 cm (64”) wide printer specifically developed for the commercial print and sign & display markets. The printer uses Mutoh’s flexible UV LED CMYK, White and Clear 0% VOC inks which enable printing on the widest range of roll substrates.

The VJ-1638UR will create instant dry output, ready for application or post-treatment. It integrates two latest generation piezo drop-on-demand print heads deliver - ing print resolutions up to 1440 x 1440dpi and two long-life UV LED lamps for fast curing. The printer requires no warm up time and is very energy efficient (< 770 Watt during printing).

High added value can be created thanks to the use of white and clear inks enabling printing on transparent media and non-white substrates, multi-layer printing and spot varnish effects. Unleash your creativity and discover numerous new application possibilities!

Features

UV LED dual head, dual lamp 162.5 cm (64”) wide

roll-to-roll printer

Print resolutions up to 1440 dpi

4 - 6 colours - CMYK + White & Clear

High opacity white ink for prints on transparent, black and coloured substrates

Clear inks for (spot) varnishing and special effects / multi-layer printing

Simultaneous white, colour and clear printing

Prints come out dry & ready to finish or deliver

Low energy consumption

0 % VOC ink – no air purifier needed

Print Technology Drop-on-demand Micro Piezo Inkjet Technology

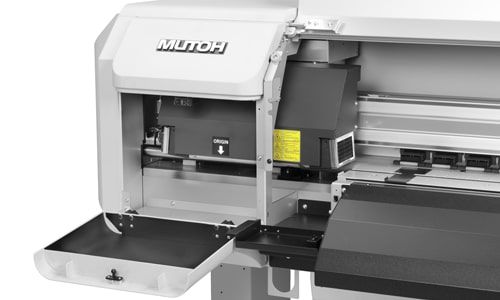

Print Heads 2 (staggered setup)

Nozzle Configuration 180 nozzles x 8 lines (each head)

Drop Mass Range (pl) 3.8 to 28

Head Height / Media Thickness 1.5/0.3 mm or 2.5/1.3 mm

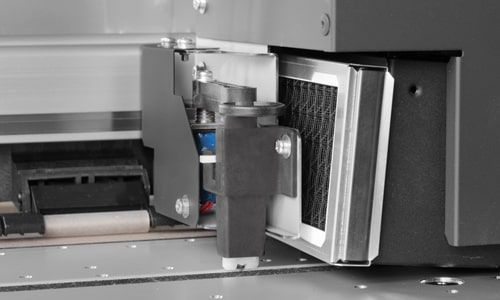

Ink Drying System 2 long life LED UV curing lamps

LED UV Lamp Life 14.250 hours

Min./Max. Media Width 182 mm (7.17") / 1625 mm (63,97”)

Max. Print Width 1615 mm (63,58”)

Media Measurements * Ø 150 mm / 2” & 3” / 30 kg

Take-up Systems Optional 30 kg and 100 kg motorised take-up systems

Ink Type LED UV Flexible inks

Ink Colours / Volume CMYK + Varnish : 220 ml cassette / 800 ml bag | White : 220 ml cassette / 500 ml bag *

Ink Setup CMYK (CCMMYYKK) | CMYK + White + Varnish (CMYK+2xWh+2xVa)

Compatibility Typical (uncoated) sign & display substrates, wall papers, canvas, backlit, transparent, coloured or black media, fluorescent paper, metallic, mirror film, etc... Prints on heat-sensitive substrates such as polyolefin-based (PVC free) self-adhesive films Non-woven, PC, PE, PET, PES, PP, PS, PVC * : Ink adhesion will vary among media type and brand. Individual testing is required in function of your choice of material, brand and specific application.

Print Resolutions Up to 1440 dpi

4-Colour (Single Layer) 2,9; 5,7; 6,5; 13,5 m²/h

6-Colour Single Layer CMYK up to 5,2 m²/h | Single Layer White up to 13,5 m²/h | Double Layer: CMYK + White, CMYK + Clear up to 2,5 m²/h | Triple Layer: Simultaneous CMYK + White + Clear up to 2 m²/h

During Printing < 770 Watt

In Stand-by / Sleep < 55 W / < 25 W

Power Supply AC 100-120 V / AC 200-240 - 60/50 Hz - ≤ 4.0 A / ≤ 2.0 A

Temperature 20 °C - 32 °C with Δt: max. 2 °C/h

Humidity 40 % - 60 % (no condensation) with ΔRH: max. 5 % RH/h

Width x Depth x Height 2983 x 818 x 1261 mm

Weight 189 kg (printer + stand)

Production of high quality graphics : in-store promotion prints & deco graphics, floor & window graphics, general signage, customised structured wallpapers, event banners & exhibition graphics, backlit prints, fine art prints, packaging samples, etc.
