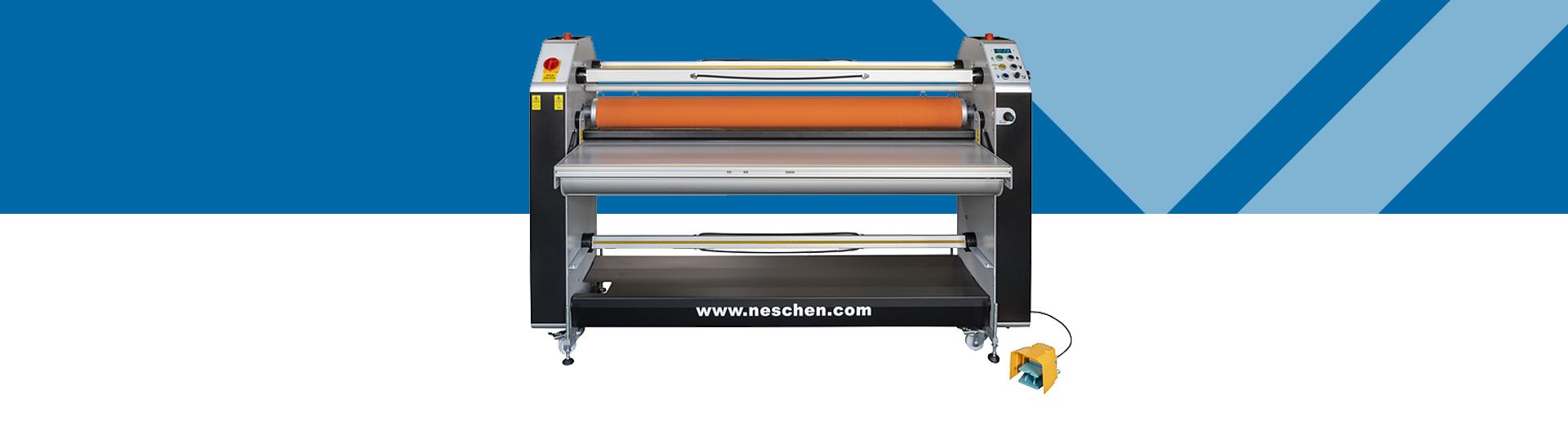

Neschen ColdLam 1650 laminator on blue background

Neschen ColdLam 1650 SW Laminator

The Neschen ColdLam 1650 SW is a pressure sensitive machine with heat assist on the top roller (70 degrees). It offers real flexibility and high-performance levels for small and medium-sized businesses. The two rear swing-out shafts allow easy material loading. Due to the excellent price-performance ratio, the ColdLam 1650 SW laminator is particularly suitable for advertising technicians.

Key Features and Benefits

  • Ergonomic control panel for easy operation
  • Foldable feed table for easy setup
  • In-feed trough for easy feeding of individual prints of up to 10 m
  • Swing-out shafts for easy loading
  • Additional control panel at the rear of the machine
  • Integrated compressor and roll-to-roll functionality


Options:

  • Longitudinal cutting unit
  • 150 mm core adapter
  • Infeed-table add-on pack

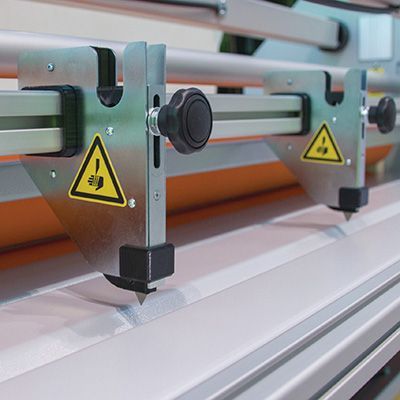

Neschen ColdLam 1650 SW cutting unit

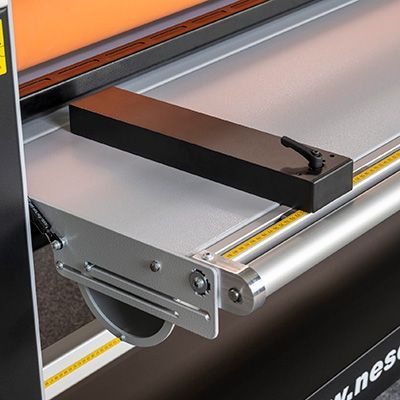

Neschen ColdLam 1650 infeed table with alignment guides

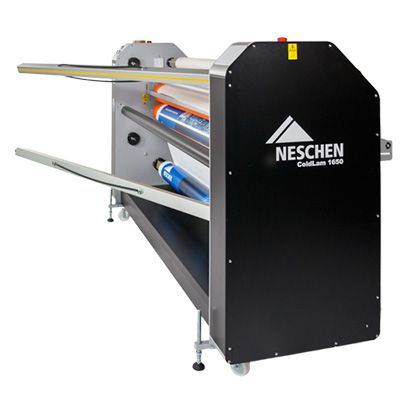

Neschen ColdLam 1650 SW back windups

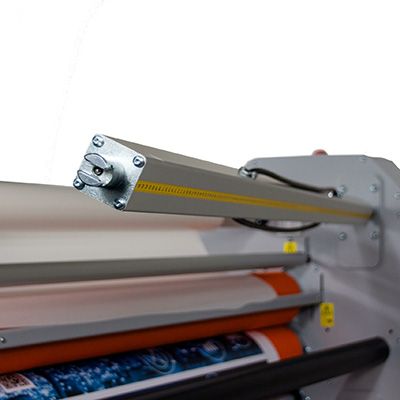

Neschen ColdLam 1650 SW swing out

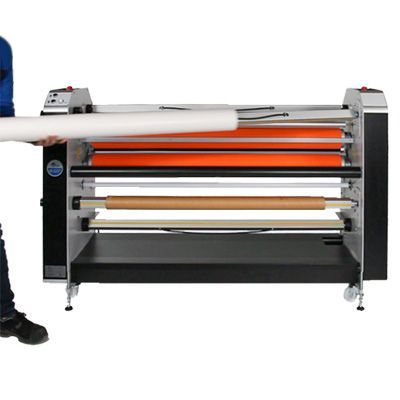

Neschen ColdLam 1650 SW loading windup

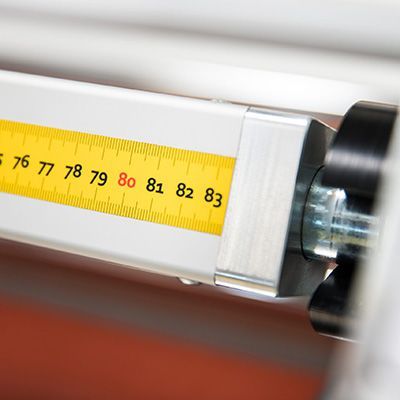

Neschen ColdLam 1650 SW ruler

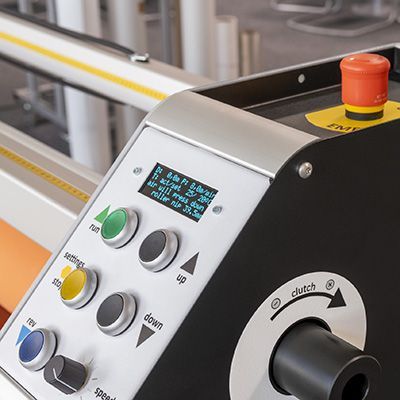

Neschen ColdLam 1650 SW controls
View more

Technical Specs:

  • Max. processing width: 1650 mm
  • Max. processing speed: 8 m/Min.
  • Max. contact pressure: 1.6 N/mm
  • Max. substrate thickness: 40 mm
  • Roller heating: 70 °C (top roller)
  • Dimensions, width × height × depth: 2175 mm × 1320 mm × 650 mm
  • Table height: 870 mm on wheels, adjustable up to 950 mm
  • Net weight: 490 kg
