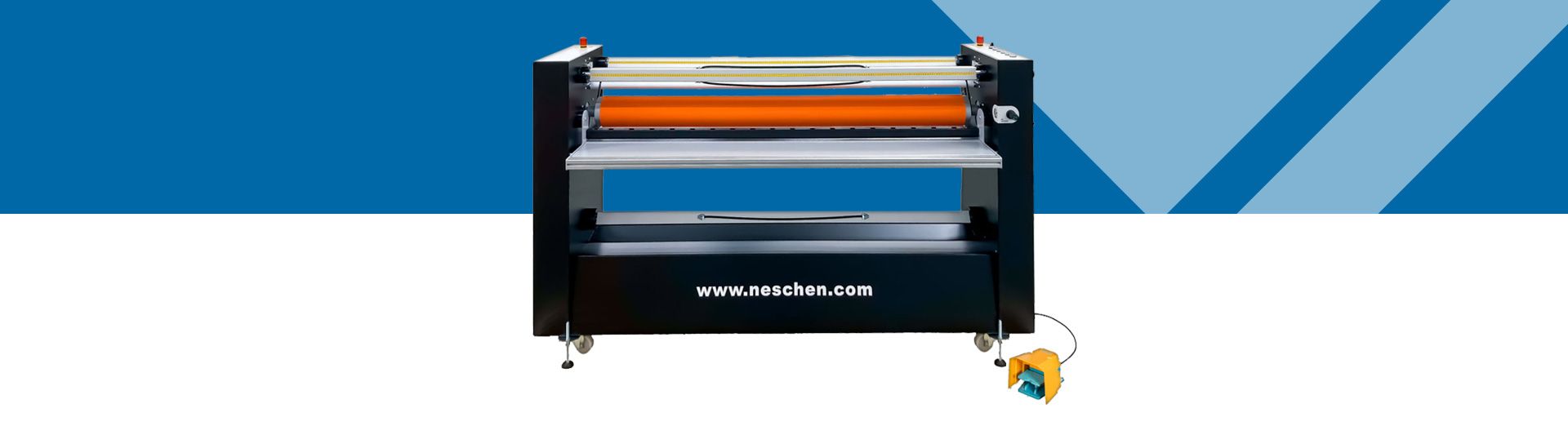

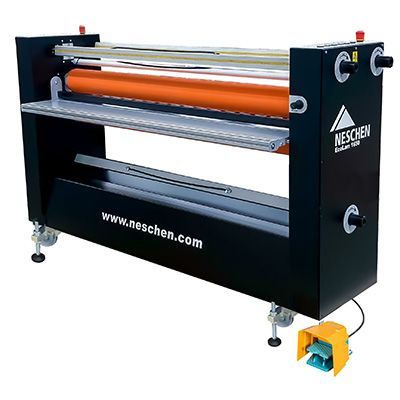

Neschen EcoLam 1650 Laminator
The Neschen EcoLam 1650 is a pressure sensitive machine to provide excellent results with a wide range of materials. It offers real flexibility and high performance for end users with low throughput. Due to the excellent price-performance ratio, the EcoLam 1650 laminator is particularly suitable for advertising technicians and small to medium display-based businesses who want to provide a wider range of applications and have no need for a machine with shrink-wrapping options
Key Features and Benefits

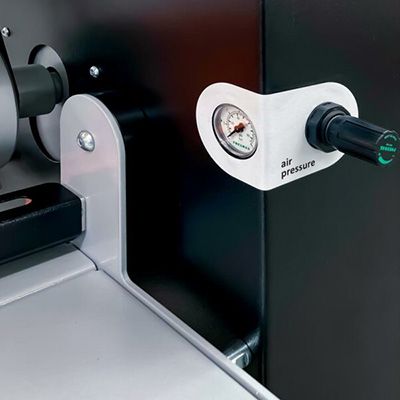

- Pneumatic pressure and manual speed adjustment
- Externally located brakes for film tension adjustment
- Built-in compressor for pneumatic roller lifting
- Foldable feed table for easy setup

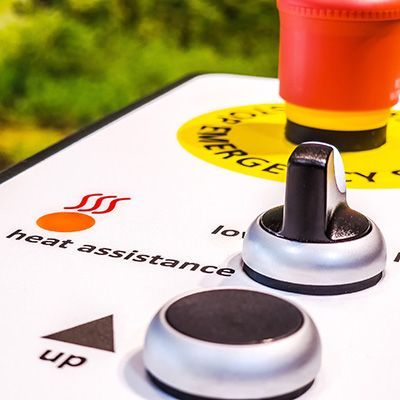

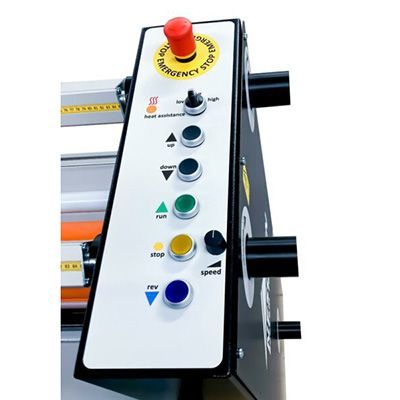

- Ergonomic control panel on the top of the machine
- Auto-grip shafts for user-friendly material loading
Available upgrades:
- Cutting system
- Additional upwind assembly
- High-speed motor 8 m/Min.
Technical Specs:
- Max. processing width: 1650 mm
- Max. processing speed: 4 m/Min.*
- Max. contact pressure: 1.6 N/mm
- Max. substrate thickness: 40 mm
- Roller heating top roller: 40 °C or 50 °C
- Dimensions, width × height × depth: 2175 mm × 1280 mm × 700 mm
- Table height: 860 mm on wheels, adjustable up to 940 mm
- Net weight: 270 kg
