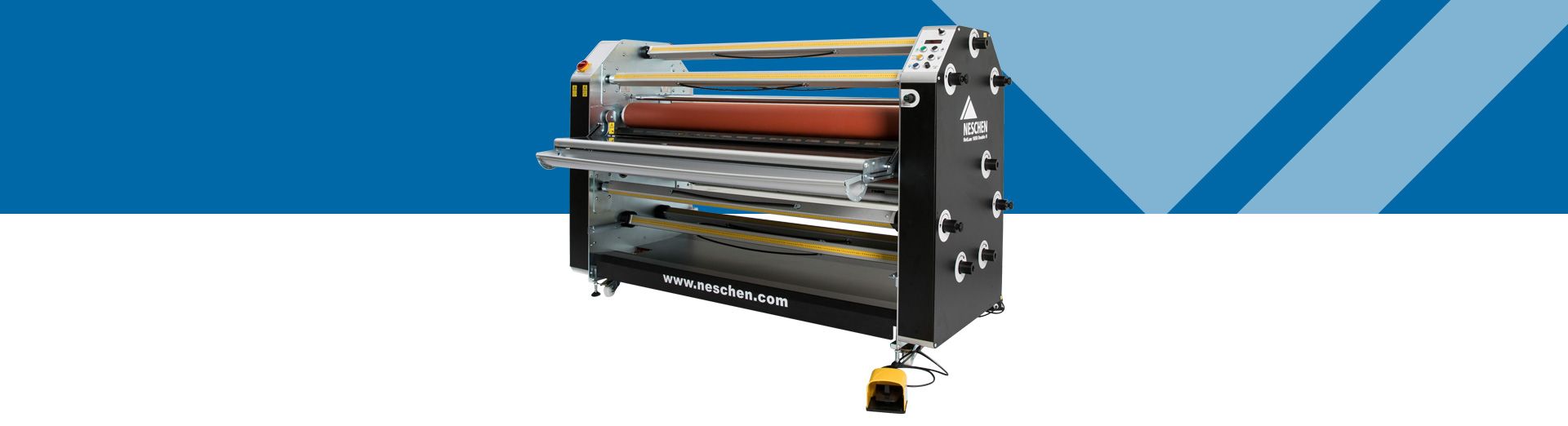

Neschen HotLam 1650 DoubleH Laminator
The Neschen HotLam 1650 Double H is the perfect device for experienced professional users. It impresses with the ability to combine encapsulation of heat activated materials and a high working speed, increasing the finishing department’s productivity. Material protrusions can be easily removed with the integrated longitudinal cutting solution to prevent open adhesive tapes.
Four of the seven auto-grip shafts are swing-outs.
Key Features and Benefits
- 2 pairs of main rollers for hot/cold applications
- Four swing-out auto-grip shafts for user-friendly loading
- Pull-out unwinding trough for easy feeding of individual prints of up to 10 m
- Externally located brakes for better adjustment of film tension
- Requires an external compressor for operation
- Two foot switches
Technical Specs:
- Max. processing width: 1650 mm
- Max. processing speed: 8 m/Min.
- Max. contact pressure: 3.1 N/mm
- Max. substrate thickness: 40 mm
- Roller heating: 160 °C (both rollers)
- Dimensions, width × height × depth: 2175 mm × 1390 mm × 850 mm
- Table height: 870 mm on wheels, adjustable up to 950 mm
- Net weight: 820 kg
