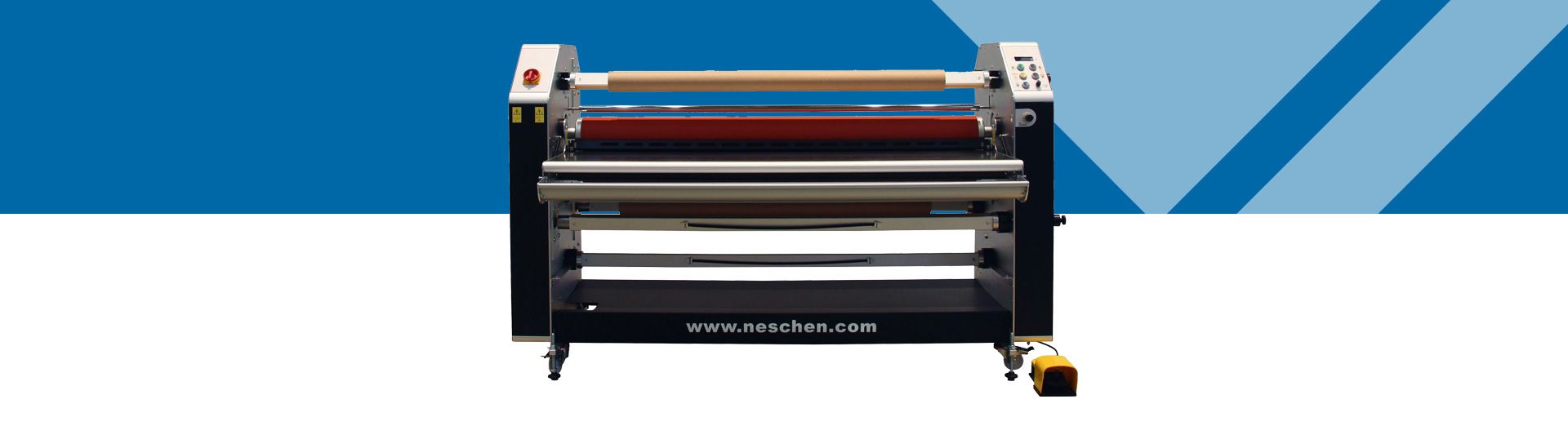

Neschen HotLam 1650 TH Laminator

The Neschen HotLam 1650 TH with its variable pressure and speed adjustment is aimed at both new and experienced users. A sophisticated roller concept with high contact roller pressure. At 12 meters per minute the HotLam 1650 produces excellent results – fast. Auto-grip shafts allow for easy material handling. The longitudinal cutting unit brings your product to the exact end format.

Key Features and Benefits

  • Manual air pressure and speed adjustment for maximum flexibility
  • Swing-out auto-grip shafts for user-friendly loading
  • Externally located brakes for better adjustment of
  • Film tension
  • Integrated compressor and role to role functionality
  • Foldable feed table for easy setup
  • Additional control panel at the rear of the machine


Options:

  • 150 mm core adapter
  • Infeed-table add-on pack


Technical Specs:

  • Max. processing width: 1650 mm
  • Max. processing speed: 12 m/Min.
  • Max. contact pressure: 3.1 N/mm
  • Max. substrate thickness: 40 mm
  • Roller heating: 160 °C (top roller)
  • Dimensions, width × height × depth: 2175 mm × 1320 mm × 650 mm
  • Table height: 870 mm on wheels, adjustable up to 950 mm
  • Net weight: 490 kg
