Mutoh VJ-1638UH MkII Hybrid UV Printer

Engineered in Japan for professional-grade UV roll-to-roll and rigid printing.

Made in Japan and designed for professionals, the XpertJet-1341SR Pro is lightweight (just 86kg) with a compact footprint (1,916mm x 685mm). It delivers high-speed productivity and superior print quality—powered by the AccuFine printhead—for an ideal balance of cost and performance.



Equipped with MUTOH’s unique automation and efficiency technologies, the XPJ-1341SR Pro produces consistently high-quality prints with minimal user intervention across diverse media, including vinyl, banner, and canvas.

Vinyl Printing Made Easy

Be amazed by the premium quality and ease of use of the XpertJet-1341SR Pro. With a small footprint and light weight, produce custom stickers and graphics from almost anywhere.

Mutoh 1638UH

"Flexiability we offered by our 1638UH UV printer will help getting the job done.”

Hard and Flexible ink available

1638UH Hybird UV Printer delivers

  • Overview

    Overview

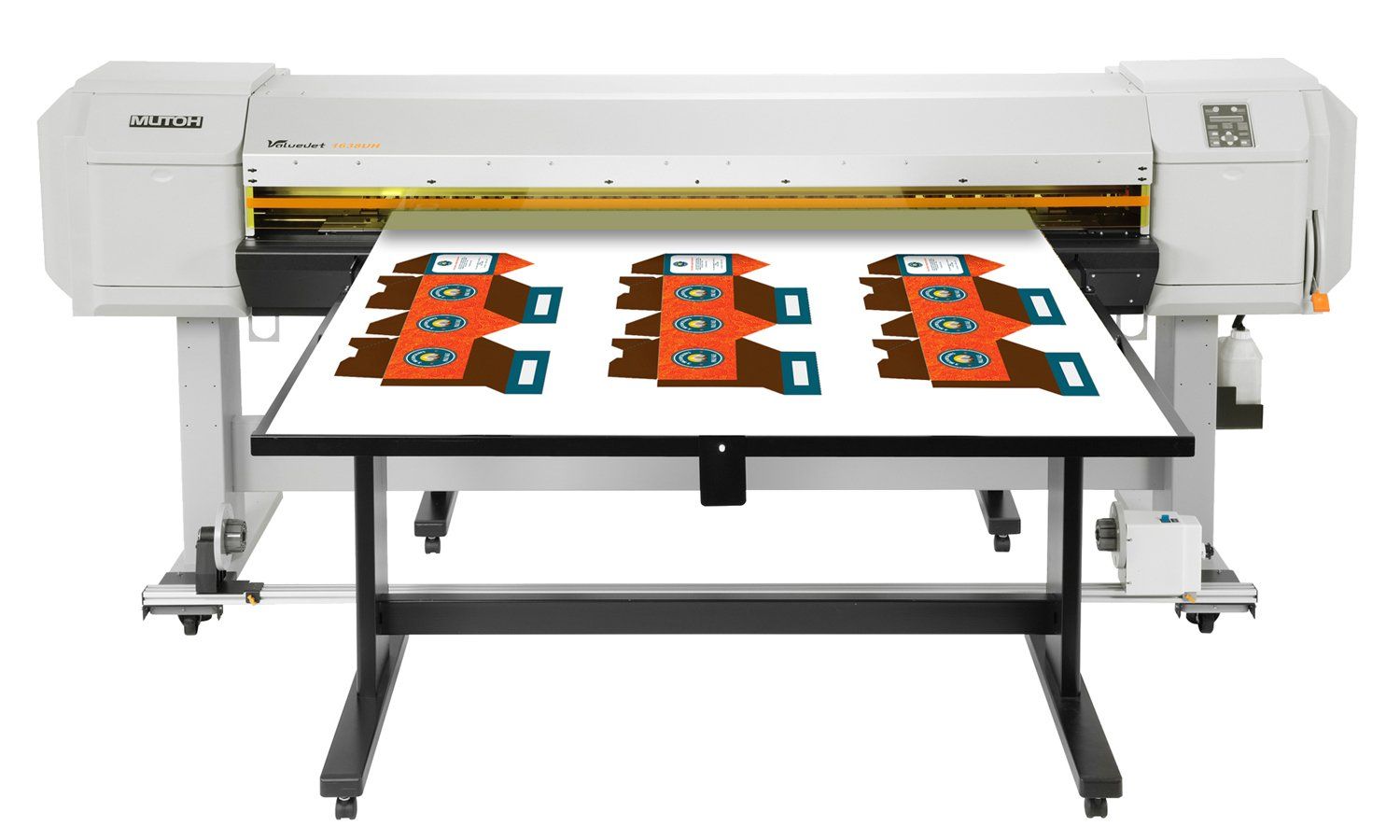

    The ValueJet 1638UH is an LED-UV printer that handles 64" (1625mm) wide roll and rigid sheet media up to 15mm thick. Switching between the two modes takes just a few moments.


    ​


    Featuring a dual, staggered print head design and two LED-UV curing lamps, the VJ-1638UH has production speeds up to 22.71 m²/h @ 720 x 720 dpi.


    ​


    No outgassing required - your print jobs are ready to ship as soon as they are printed.


    ​


    Mutoh UV inks create rich, high density back-lit prints without the need to double-strike so you can still print at the full-speed of the printer. The ink is dry the moment it is printed, so there's no need for extended dry times or additional dryers as can be the case with other printing methods.


    ​


    Mutoh LED-UV lamps emit no heat so there's no need to buy expensive, heat resistant, specialty media. You can print on delicate films and corrugated plastics, like Corflute, without any worry of scorching or warping the media.



    Mutoh offers two types of inks for all its UV printer range. Choose LUH1 (hard) inks for regular roll media and flat, rigid sheets and boards; or choose US11 soft inks for roll media requiring crease or limited stretch characteristics.

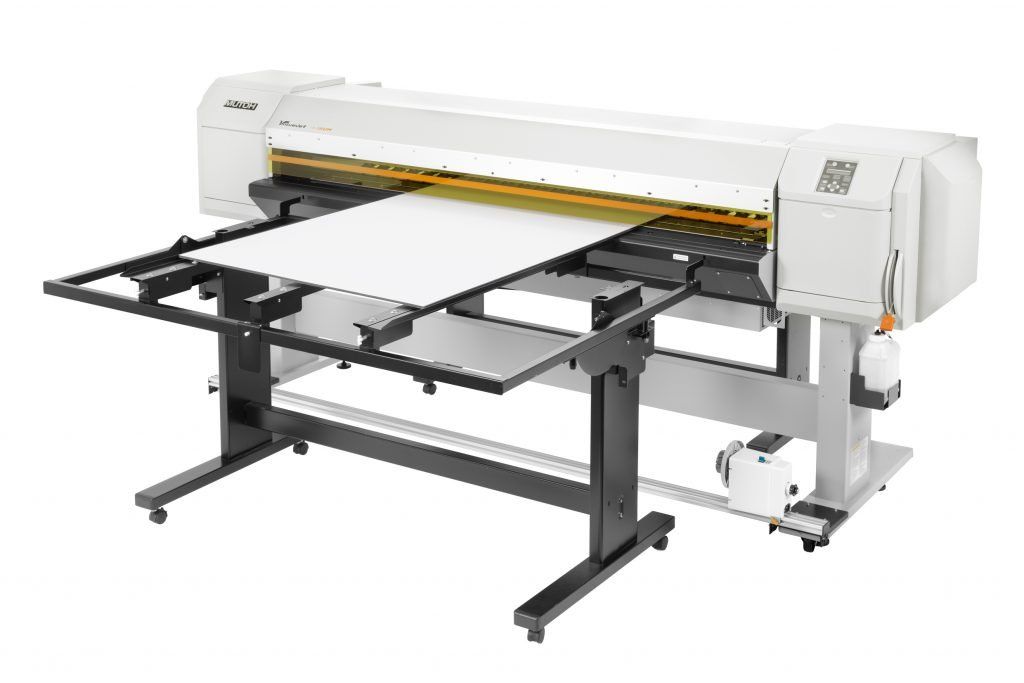

    The optional feed and output tables for rigid media can be and folded vertical and rolled up against a wall in a matter of moments when you're using the roll-to-roll print capability, giving you more room to move.



    There's eight ink slots, allowing you to set up your VJ-1638UH with either double-CMYK or CMYK plus two White and two Varnish inks, according to your requirements. Use the white ink for backlits or under colour on dark substrates. Use the varnish for spot effects or an all-over gloss.


    ​​


    Add the SpectroVue VM-10 spectrophotometer for re-calibrating to keep your colour workflow consistent or for making additional colour profiles.




  • Features

    Features

    The Mutoh ValueJet 1638UH features include:


    Dual staggered print heads for faster, high quality prints


    Two energy efficient LED-UV lamps


    Print rigid media up to 15mm thick


    Print up to 1625mm (64") wide roll media


    Multi-layer printing with white, colour, varnish


    Eight cartridges: dual CYMK or CMYK plus 2x White and 2x Varnish


    Ink re-circulation system for the white inks


    Mutoh’s LED-UV inks are completely VOC-free and do not contain any hazardous air pollutants (non-HAP)


    Print jobs are ready to ship as soon as they are printed - no out-gassing required


    Tables for printing rigid media easily fold away when not needed


    Add a Mutoh SpectroVue VM-10 spectrophotometer to re-calibrate or make your own colour profiles



  • Specifications
    • Print Method Variable dot, Drop On-Demand Piezo Drive Method
    • Print heads Two print heads in a dual, staggered configuration
    • Ink curing system Two LED-UV lamps
    • Ink Type Mutoh UV-LED ink
    • Droplet size 3.8 to 28 pl
    • Print Mode 1440/1080/720/540/360 dpi
    • Colour Options 2x CMYK | CMYK + 2 White + 2 Varnish
    • Ink Types LUH1 hard ink for rigid and roll media with limited crease | US11 flexible ink for media with crease and stretch characteristics
    • Media specification Max media width: 1626 mm | Max print width: 1615 mm | Max rigid media thickness: 15 mm | Max rigid sheet length: 1200 mm per set of tables | Max rigid media weight: 15 kg
    • Roll Media Diameter 150 mm on a 3" (75mm) or 2" (50mm) core
    • Roll Media Take-Up System Optional motorised roll-off system
    • Curing System Two (2) long-life UV-LED Lamps
    • Printer weight with Stand 197 kg
    • Table weight 43 kg each
    • Spectrophotometer SpectroVue VM-10 available as an option
    • Dimensions Roll printing: (W)2983 X (D)818 X (H)1261 mm | Rigid sheet printing: (W)2983 X (D)2730 X (H)1261 mm (tables attached)
    • Production Speed 22.71 m²/h @ 720 x 720 dpi (2x CMYK)
    • Operating Temperature 20-32°C with t: max. Δ2°C/h
    • Operating Humidity Range 40% - 60% (no condensation) with RH: max. Δ5% RH/h
    • Power Requirements 200-240V at 50Hz
    • Power Use During Printing: <700w | Stand-by: <55w | Sleep: 25W
    • Warranty 1 Year
  • Specifications

    Applications

    Sign & Display


    Large and panelled advertising signs


    Backlit panels and prints


    Aluminium composite panels


    Corflute signs


    Point-of-sale signage


    Self-adhesive vinyl


    Outdoor banners


    Pull-up banners




    Industrial


    Packaging prototypes and mock-ups


    Labels





    Specialty and Promotional


    Backlit menus


    Point-of-Sale acrylic displays


    Wallpaper


    Textured prints


    Spot varnish effects and raised / embossed finishes

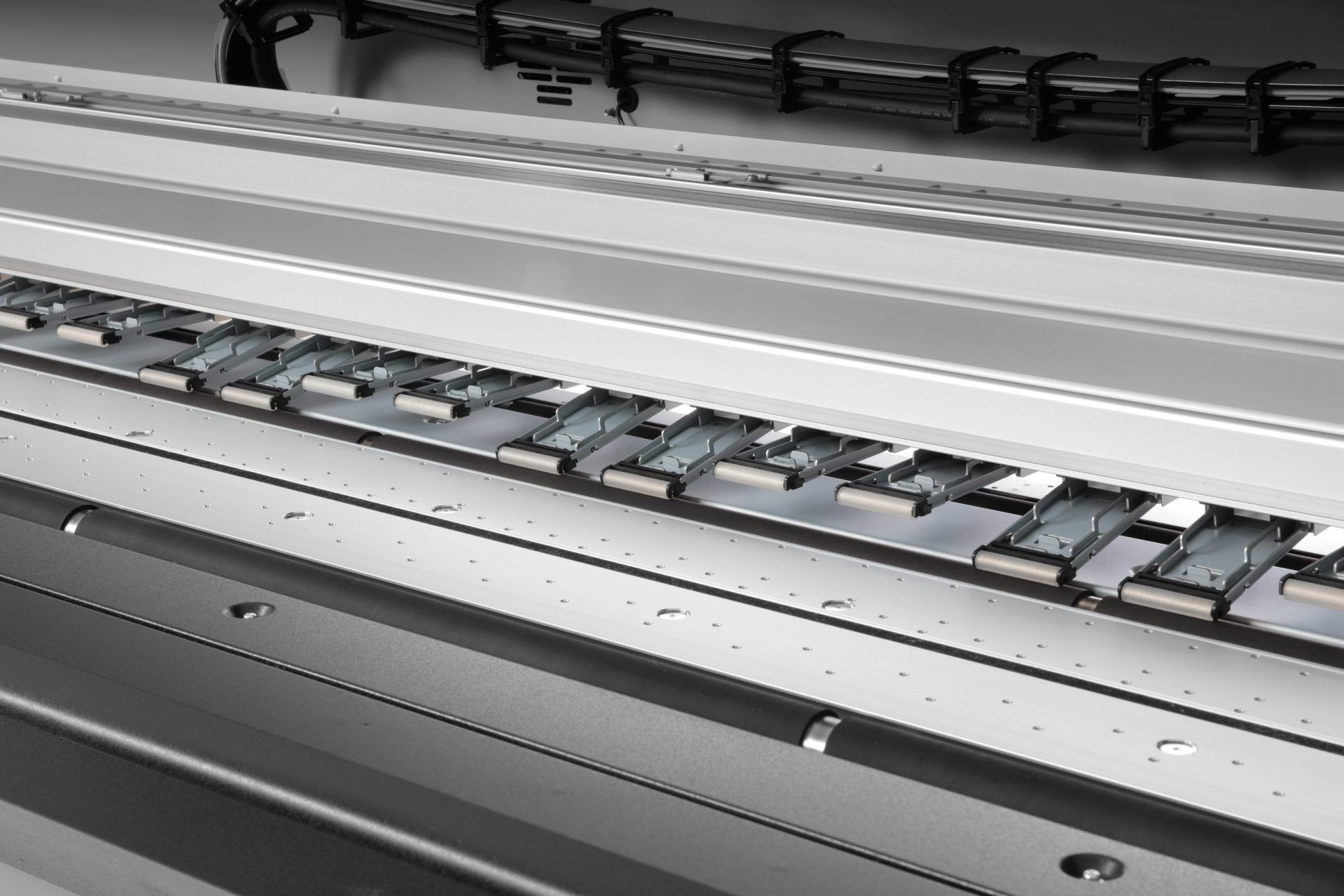

Pressure Rollers

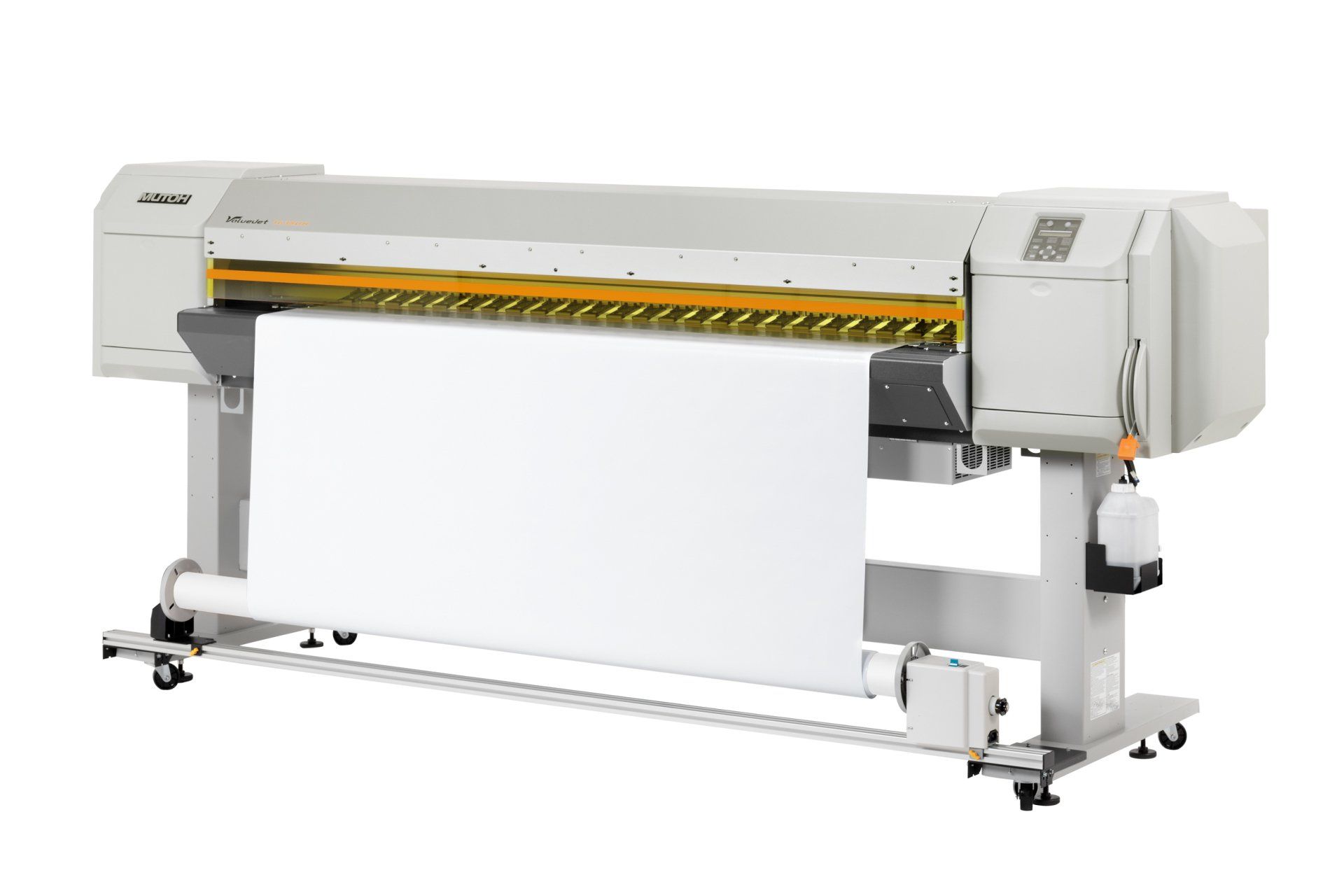

Roll to Roll with Take-Up
