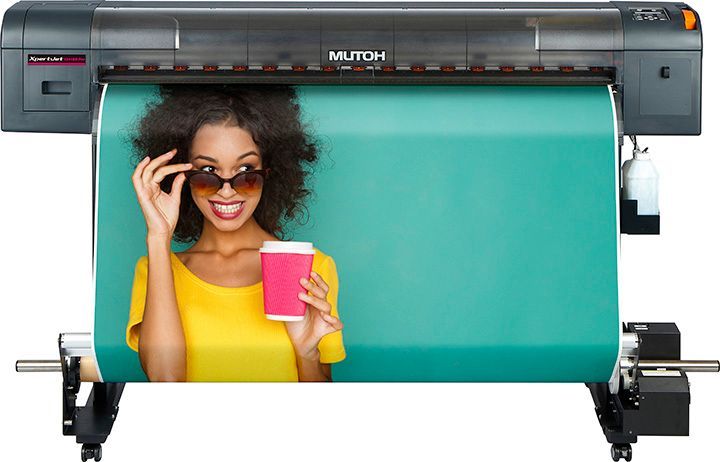

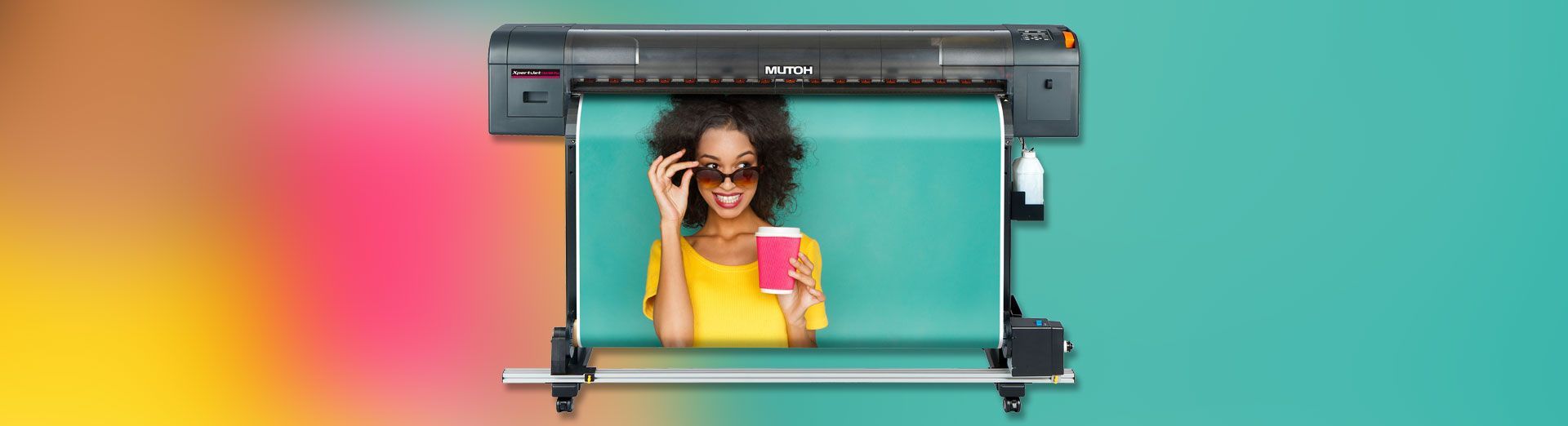

Mutoh XPJ-1341SR Pro Vinyl Printer
Engineered in Japan for professional-grade eco-solvent vinyl printing.
Made in Japan and designed for professionals, the XpertJet-1341SR Pro is lightweight (just 86kg) with a compact footprint (1,916mm x 685mm). It delivers high-speed productivity and superior print quality—powered by the AccuFine printhead—for an ideal balance of cost and performance.
Equipped with MUTOH’s unique automation and efficiency technologies, the XPJ-1341SR Pro produces consistently high-quality prints with minimal user intervention across diverse media, including vinyl, banner, and canvas.
Mutoh XPJ-1341SR Pro Overview
Be amazed by the premium quality and ease of use of the XpertJet-1341SR Pro. With a small footprint and light weight, produce custom stickers and graphics from almost anywhere.
Mutoh XPJ-1341SR Pro Features
DropMaster2
Automatic alignment of ink drops in bi-directional print modes allowing for high-speed printing with high detail.
Feed Master
Automatic calibration of media feed to ensure not banding between media types.
Media Tracker
Print a barcode before removing the media. Scan the barcode in when loading the media again to recognise the remaining media.
Nozzle Area Select
In the event of block nozzles not restoring, printing can continue using only the available nozzles.
Variable Head Height
Reduce the risk of head strike and maintain the highest quality print with the 3 stage head height adjustment.
MS31 Ink
GREENGUARD Gold certified ink delivers outstanding colour while allowing you to install printed graphics in high-sensitive environment like hospitals, childcare facilities etc.
Take-Up
Motorised take-up unit comes as standard.
RIP Software
Driven by Mutoh's own award-winning, easy to use RIP software VerteLith.

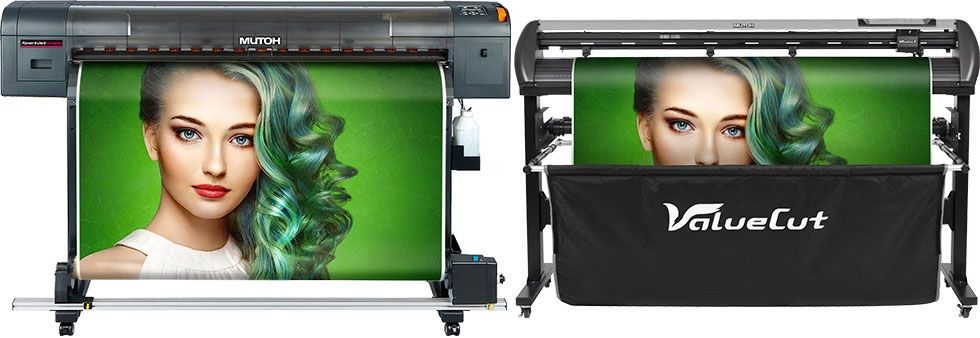

Print & Cut at the Same Time!
Pair the Mutoh XpertJet-1341SR Pro printer with the Mutoh VC2 cutter for a seamless, high-speed print-and-cut workflow that turns ideas into premium stickers, labels, and signs. Together, this perfect duo delivers continuous production, letting you churn out professional-grade, durable prints on vinyl, banner, and canvas.
Mutoh XPJ-1341SR Pro Specifications
| Print method | On-demand piezo drive system |
|---|---|
| Head height | Three-level adjustment of 1.5mm, 2.0mm, and 2.5mm |
| Number of heads | 1 |
| Max. roll width | 1,371mm |
| Max. media thickness | 0.3mm(Low), 0.8mm(Middle), 1.3mm(High) |
| Media diameter | Φ150 mm or less |
| Core diameter | 2 or 3 inches |
| Max. media weight | 19kg or less |
| Max. printable width | 1,361mm |
| Max. print length | 200mm |
| Ink type | MS31 |
| Colour | 4-Color (Black, Cyan, Magenta, Yellow) |
| Ink volume | 220ml/1000ml |
| Print resolution | Maximum 1200dpi |
| Interface | Ethernet (10BASE-T / 100BASE-TX) |
| Power supply | Voltage: AC 100V～120V ±10% / AC 200V～240V ±10% Frequency: 50/60Hz ±1Hz |
| Operational environment | Temperature: 20℃～32℃ Humidity: 40%～60% No condensing |
| Accuracy guaranteed | Temperature: 22℃～30℃ Humidity: 40%～60% No condensing |
| Power consumption during operation | AC100V～120V/AC200V～240V: 1560W or less (with heater ON) |
| Power consumption sleep mode | AC100V～120V/AC200V～240V: 21W or less |
| External dimensions (W) x (D) x (H) | Printer mounted on stand: W1,916mm x D685mm x H1,218mm (when cover closed) |
| Weight | 86.0 kg (printer: 66.0kg Stand: 20.0kg) |
| RIP software | VerteLith (MUTOH genuine RIP software) |
