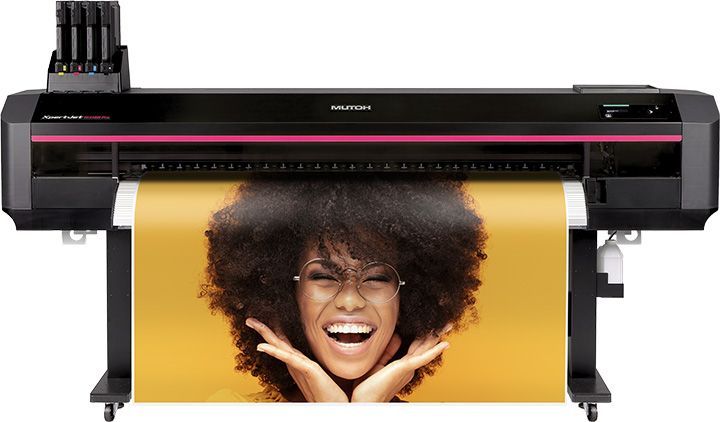

XpertJet 1641 Pro

High Precision Aluminum Rail Mechanism - for high quality and stable printing

Automatic Bi-Directional alignment with built-in colour sensor- save time by automatically calibrating printer alignments, increasing ease of use

Multi-stage pressurizing mechanism - enhances media feed stability for various media

Internal LED lighting - illuminates work area to easily monitor print status

LED warning indicators – for each ink cartridge slot, showing remaining ink levels

New LED touch panel - user friendly touch panel which only displays keys necessary for desired functions

MUTOH Status Monitor (MSM) - checks the printer’s operation status in real time. MSM mobile provides monitoring with a smartphone or tablet

New media feed flange - allows operators easy media loading. When the flanges have been mounted in advance, it becomes easy and quick exchanges multiple rolls.

High Precision Aluminum Rail Mechanism - for high quality and stable printing

Automatic Bi-Directional alignment with built-in colour sensor- save time by automatically calibrating printer alignments, increasing ease of use

Multi-stage pressurizing mechanism - enhances media feed stability for various media

Internal LED lighting - illuminates work area to easily monitor print status

LED warning indicators – for each ink cartridge slot, showing remaining ink levels

New LED touch panel - user friendly touch panel which only displays keys necessary for desired functions

MUTOH Status Monitor (MSM) - checks the printer’s operation status in real time. MSM mobile provides monitoring with a smartphone or tablet

New media feed flange - allows operators easy media loading. When the flanges have been mounted in advance, it becomes easy and quick exchanges multiple rolls.

• Print head Drop-on-demand Micro Piezo Inkjet Technology
• Head Height Three level adjustment of Low: 1.5mm, Mid: 2.5mm, and High: 4.0mm
• Number of Heads 2 staggered
• Media Width Maximum 1625mm / Minimum 500mm
• Max. Thickness Low: 0.3mm, Mid: 1.3mm, High: 2.8mm
• Media Diameter 150mm or less
• Tube Diameter 50mm or 75mm
• Media Weight 30kg
• Max. Print Width 1615mm
• Max. Print Length 1500m
• Ink Type Eco-Solvent
• Ink Colour 4-colour (CMYK)
• Ink Amount 1000ml ink bag
• Print Resolution Max. 1440dpi
• Interface Gb-Ethernet (1000BASE-T)
• Printer Power Supply Voltage: AC 100V-120V ±10% / AC 200V-240V ±10% Frequency: 50/60Hz ±1H
• Printer Hearer Supply Voltage: AC 100V-120V ±10% / AC 200V-240V ±10% Frequency: 50/60Hz ±1Hz
• Operation Environment Temperature: 20 °C - 32 °C Humidity: 40% - 60% No condensation
• Condition for Accuracy Temperature: 22 °C - 30 °C Humidity: 40% - 60% No condensation
• Power Consumption AC 100V-120V±10% / AC 200V-240V±10%, 1100W or below
• Sleep Mode Power Consumption AC 100V-120V±10% / AC 200V-240V±10%, 30W or below
• External Dimensions (WxDxH) Body: 2750mm x 895mm x 1428mm (cover closed), 1524mm (cover opened) / (when installing ink bag cases: 1613mm)
• Weight Main body: 146kg Stand: 33kg
• RIP Software FlexiSIGN & PRINT MUTOH Edition
