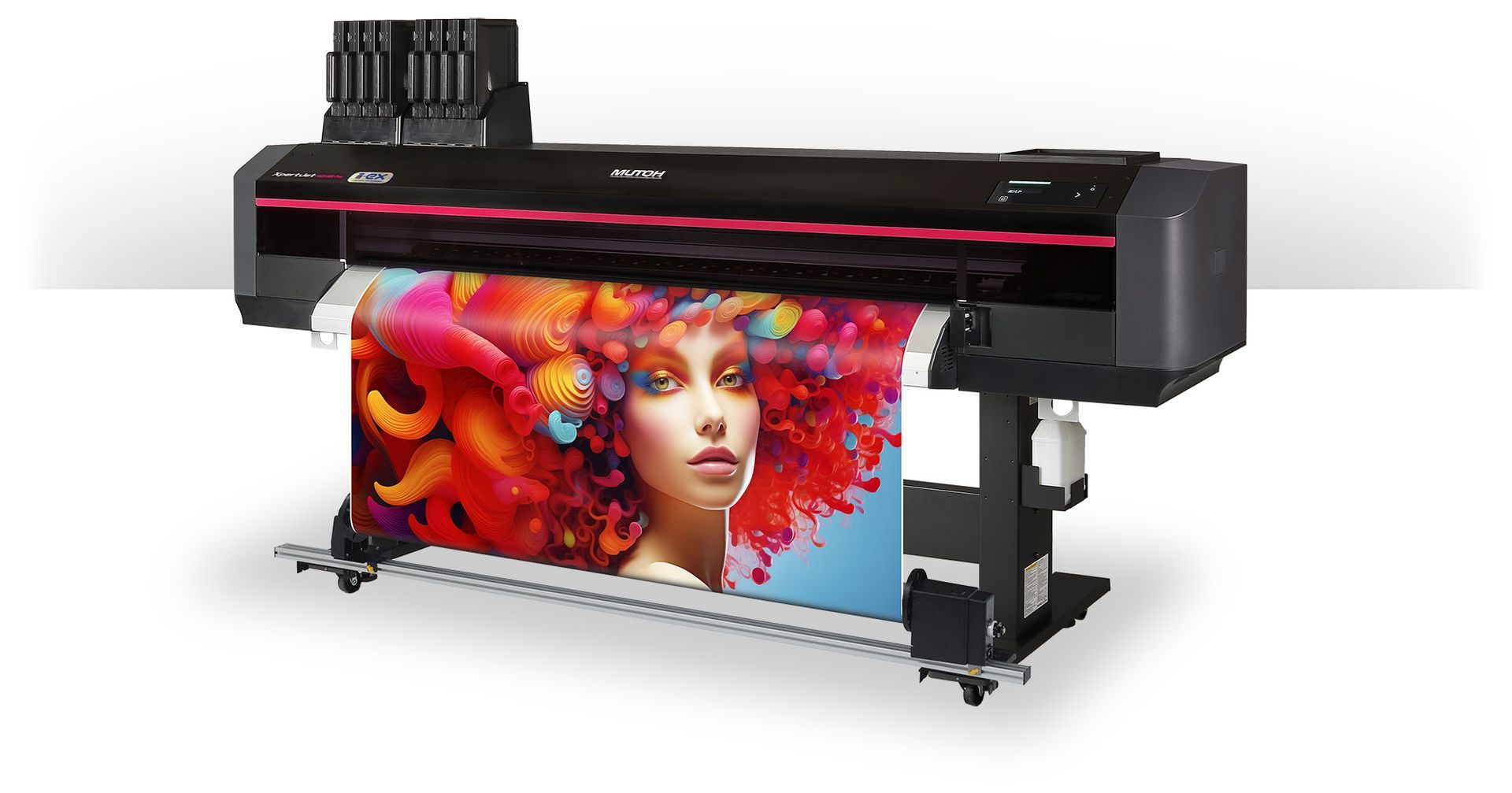

Mutoh XPJ-1681SR Pro Vinyl Printer
Engineered in Japan for high-quality signage and graphics
The Mutoh XpertJet 1681SR Pro is a professional-grade 64" (1625mm) eco solvent printer designed for sign makers, print shops and graphics professionals who demand outstanding colour accuracy, production reliability and exceptional image quality.
Mutoh XPJ-1681SR Pro Delivers More
Built on Mutoh's latest print technology, the XpertJet 1681SR Pro produces vibrant colours, smooth gradients and sharp detail across a wide range of indoor and outdoor applications. Whether you're producing vehicle wraps, stickers, banners, posters, wall graphics or point-of-sale displays, this printer delivers consistent results day after day.
With its 8-colour MS41 eco solvent ink system, including Orange, Light Cyan, Light Magenta and Light Black inks, the XpertJet 1681SR Pro achieves an expanded colour gamut and more natural skin tones while producing smoother greys and photographic images than traditional CMYK printers.
Highest Print Quality
The AccuFine HD Pro print head features a wider design and higher nozzle density than conventional print heads, delivering greater precision and improved productivity. This advanced technology enables high-speed printing without compromising image quality, producing smooth, solid colours with less banding.
Mutoh XPJ-1681SR Pro Features
DropMaster2
Automatic alignment of ink drops in bi-directional print modes allowing for high-speed printing with high detail.
Feed Master
Automatic calibration of media feed to ensure not banding between media types.
Media Tracker
Print a barcode before removing the media. Scan the barcode in when loading the media again to recognise the remaining media.
Nozzle Area Select
In the event of block nozzles not restoring, printing can continue using only the available nozzles.
Variable Head Height
Reduce the risk of head strike and maintain the highest quality print with the 4 stage head height adjustment.
MS41 Ink
GREENGUARD Gold certified ink delivers outstanding colour while allowing you to install printed graphics in high-sensitive environment like hospitals, childcare facilities etc.
Take-Up
Motorised take-up unit comes as standard.
RIP Software
Driven by Mutoh's own award-winning, easy to use RIP software VerteLith.

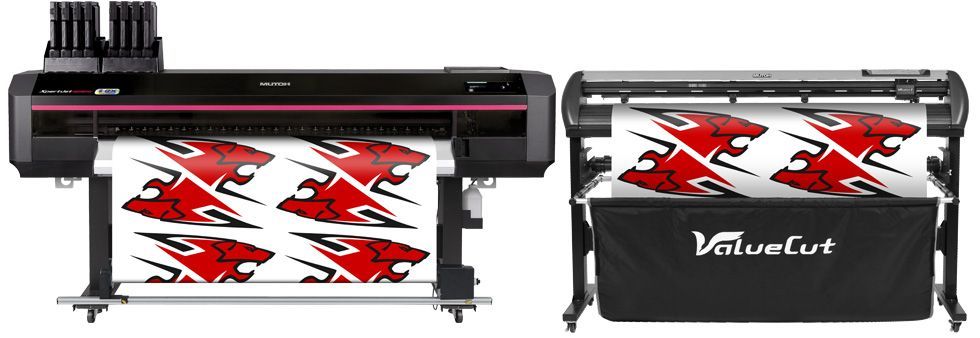

Print & Cut at the Same Time!
Unlock a complete print-and-cut solution by combining the Mutoh XpertJet 1681SR Pro with a Mutoh VC2 vinyl cutter. Together they provide a streamlined workflow for producing high-quality stickers, labels, vehicle graphics and signage with speed and precision. From printable vinyl and banners to canvas, this professional pairing helps maximise productivity while delivering outstanding print quality and accurate contour cutting.
Mutoh XPJ-1681SR Pro Specifications
| Print method | On-demand piezo drive system |
|---|---|
| Head height | Low1: 1.5 mm / Low2: 2.0 mm / Middle: 2.5 mm / High: 4.0 mm (When using the High head height, please replace the wiper unit to High ver.) |
| Number of heads | 1 |
| Roll media width | Maximum: 1,625 mm (Minimum: 500 mm) |
| Recommended media thickness | 1.0 mm or less |
| Maximum media thickness | Low1: 0.3 mm / Low2: 0.8 mm / Middle: 1.3 mm / High: 2.8 mm |
| Outer diameter | Ø200 mm or less |
| Core diameter (inner diameter) | 2 or 3 inches |
| Media roll weight | 30 kg or less |
| Max. print length | 1,615 mm |
| Ink type | Eco-solvent ink MS41 |
| Colour | 8 colors: Cyan, Magenta, Yellow, Black, Light Cyan, Light Magenta, Light Black, Orange |
| Ink volume | 1,000 ml ink bag, 300ml ink bag (Orange only) |
| Interface | Gigabit-Ethernet (1000BASE-T) Recommended cable category is 6 or later |
| Power supply | AC100–120 V (±10 %) (90–132 V) or 200–240 V (±10 %) (180–264 V), Frequency: 50/60 Hz (±1 Hz) |
| Operational environment | Temperature 20–32 °C, Humidity 40–60 % RH (no condensation) |
| Accuracy guaranteed | Temperature 22–30 °C, Humidity 40–60 % RH (no condensation) |
| Power consumption | Operation: 812.0 W or less (Peak: 2.3 kW), Ready to print: 52.0 W or less, Power off: 4.0 W or less |
| External dimensions | W 2,770 mm x D 895 mm x H 1,611 mm (with 1,000 ml ink cases installed) |
| Product weight | 174 kg (Printer body: 142 kg, Stand: 32 kg) |
| RIP software | VerteLith (MUTOH genuine RIP software) |
