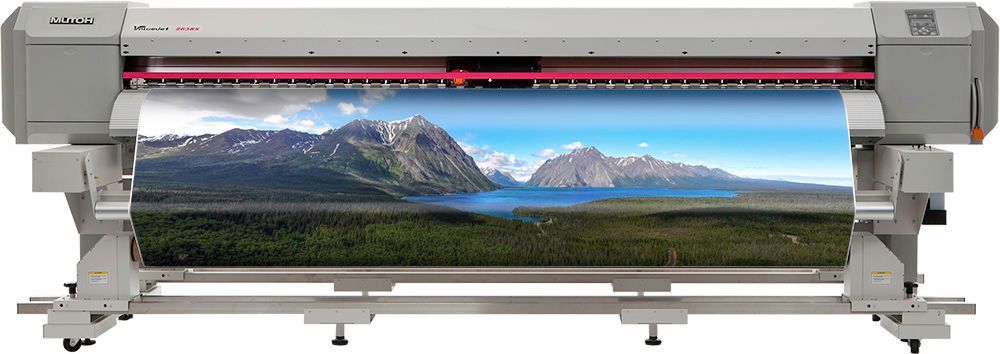

Mutoh VJ-2638X Eco-Solvent Printer
Engineered in Japan for professional-grade eco-solvent vinyl printing.
Made in Japan and designed for professionals, the XpertJet-1341SR Pro is lightweight (just 86kg) with a compact footprint (1,916mm x 685mm). It delivers high-speed productivity and superior print quality—powered by the AccuFine printhead—for an ideal balance of cost and performance.
Equipped with MUTOH’s unique automation and efficiency technologies, the XPJ-1341SR Pro produces consistently high-quality prints with minimal user intervention across diverse media, including vinyl, banner, and canvas.
Super-Wide 2.6m Printing for Maximum Impact
Be amazed by the premium quality and ease of use of the XpertJet-1341SR Pro. With a small footprint and light weight, produce custom stickers and graphics from almost anywhere.
Mutoh VJ-2638 Features
High-Speed Production
360 x 720dpi production print speed of 48m² per hour..
Heavy-Duty Take-Up
A printer of this size requires large rolls of media and a heavy-duty take-up system. 100kg take-up comes as standard.
Super Wide
Extra wide printing capabilities up to 2630mm wide.
Incredible Print Quality
Variable dot technology combined with a resolution of up to 1440dpi delivers amazing print quality.
Dual heads - Maximum Output
Large-format printing shouldn’t mean compromising on speed. That’s why the ValueJet 2638X is equipped with dual staggered print heads, covering a wider print area than single-head systems to boost overall productivity.
Run 2 x CMYK for maximum output, or switch to CMYK Lc Lm Lk when your work demands smoother tones and more refined gradients.
Build for Serious Printing
The heavy-duty media feeding and take-up system users dancer bars to allow for consistent smooth media travel, ensuring high-quality output from the first metre to the last.

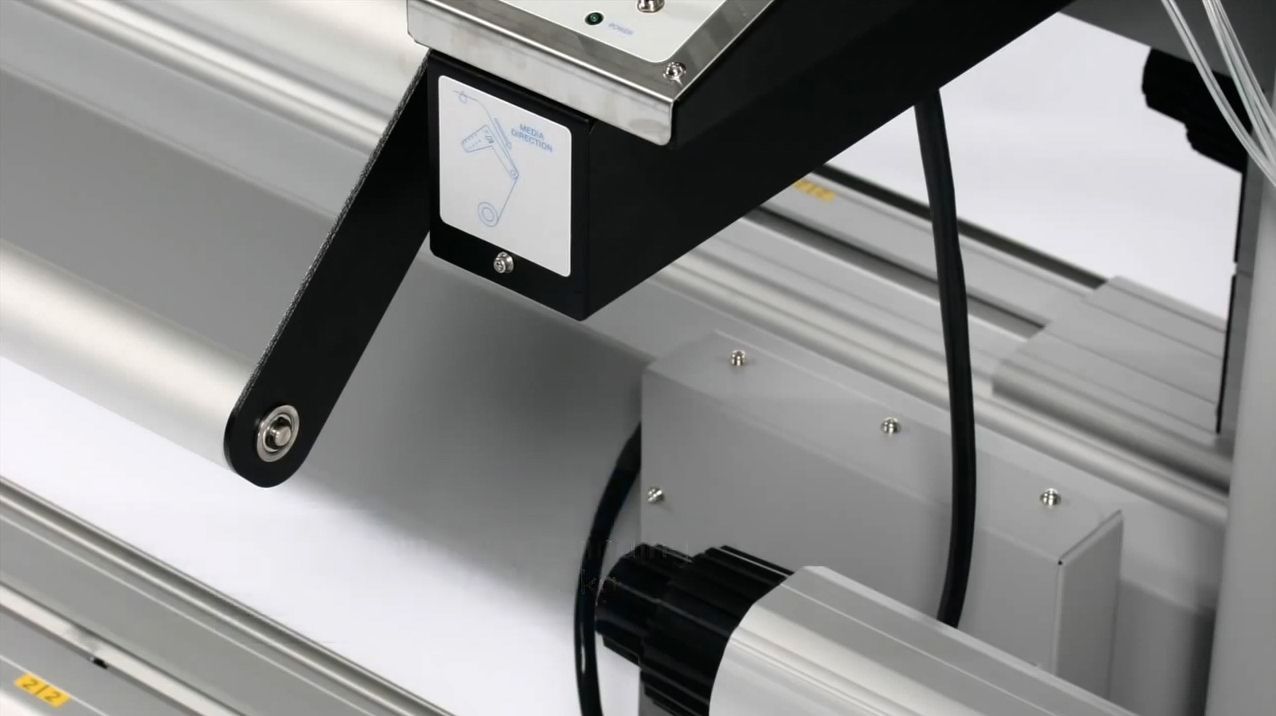

Media Take-Up

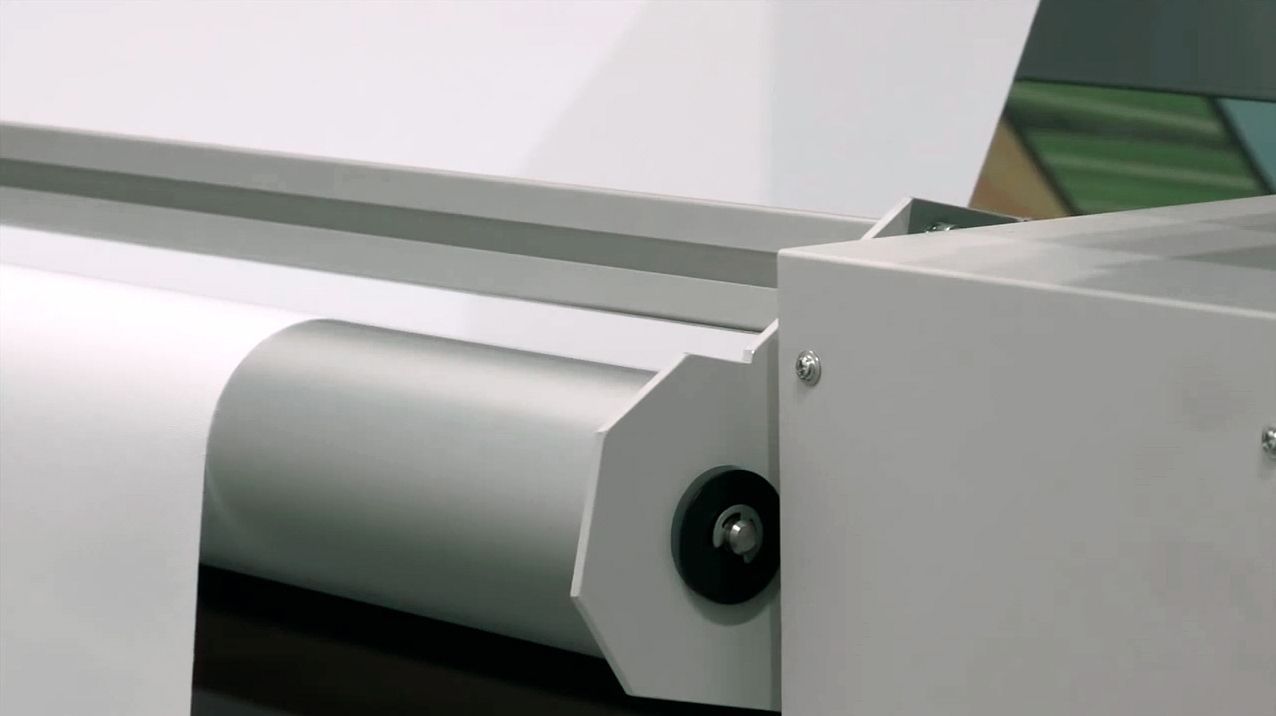

Media Feed
Mutoh VJ-2638X Specifications
| Print method | On-demand piezo drive system |
|---|---|
| Number of Nozzles | Two heads in a staggered arrangement (180 nozzles x 8 rows each) |
| Drop Mass | 3.5 to 35pl |
| Ink Type | Mutoh MS31 |
| Ink Volume | 220 ml or 440 ml cartridges 1000 ml bags with the optional ink bag adapter |
| Ink Configuration | CMYK x 2 or CMYK Lc Lm Lk |
| Head Height | 1440/1080/720/540/360 dpi |
| Maximum Media Width | 2600 mm (102") |
| Maximum Print Width | 2590 mm |
| Maximum Media Thickness | 0.3 to 2.8mm (dependant on head height) |
| Max Media Roll Weight | 100kg |
| Roll Diameter/Core | Diameter 250 mm on a 3" (75mm) or 2" (50mm) core |
| Take-Up System | 100Kg Heavy Duty Take-up Kit (included) |
| Media-Drying System | Individually Controlled Pre-, Platen and Post Heaters |
| Dimensions (Printer) | (W)3708 X (D)885.5 X (H)1261 mm |
| Production Print Speeds | 31 to 48 m²/h |
| Operating Temperature | 22-30°C with t: max. Δ2°C/h |
| Operating Humidity Range | 40% - 60% (no condensation) with RH: max. Δ5% RH/h |
| Power Requirements | 200 - 240V @ 50Hz |
| Power Use | During Printing: <1000w | Stand-by: 160W | Warming up: <=2200W (main) and <=1850W (heat) |
