Mutoh 461UF

461UF UV Printer

  • Overview

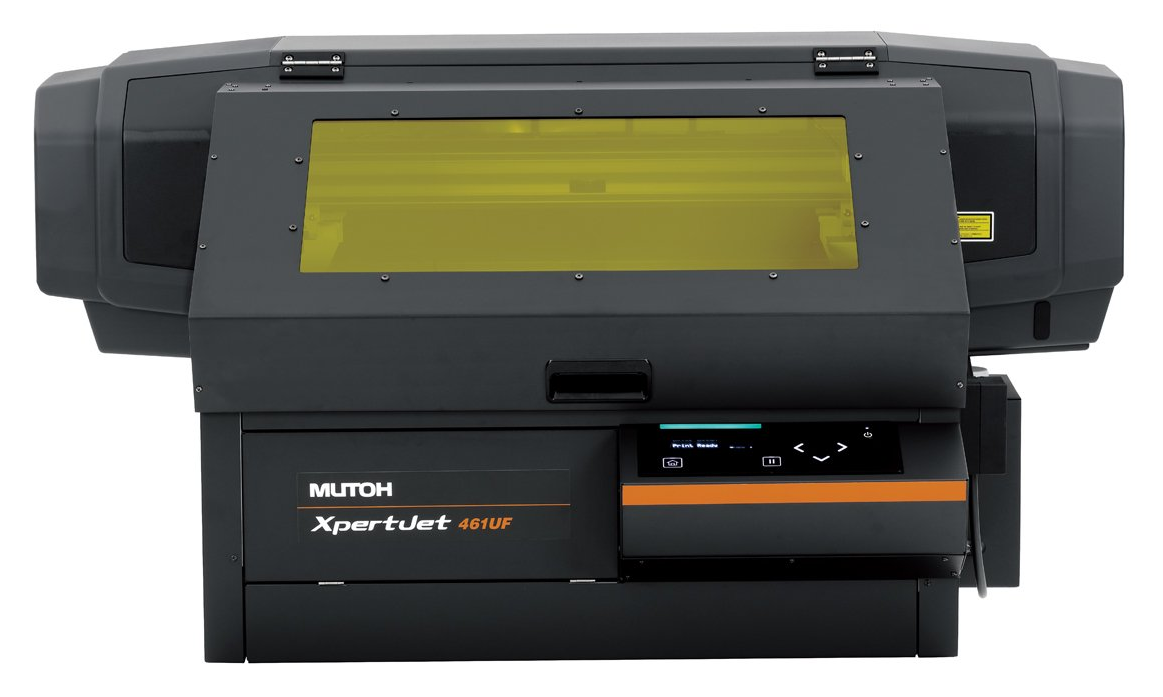

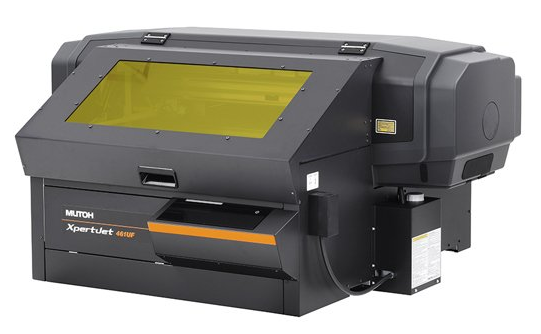

    The XpertJet 461UF, compact UV-LED flatbed printer offers many new features including a new sleek modern design, larger printable surface area, a larger window for safe viewing, an updated touch­screen panel, an improved LED lamp, optional vacuum table providing the ability for increased printing depth and more. These enhancements along with the improved ease of use and easier maintenance will increase both productivity and profitability.


    The Mutoh XPJ-461UF allows for finer texture layers which instantly adds value to any print. Tie that in with Mutoh’s “Local Dimming Control Technology”, you now have the ability to add high glossy finishes easily in one pass! The Mutoh XPJ-461UF is a great addition to your arsenal and will definitely add profits to your business!

  • Features

    9 x 13-inch printer

    Energy-efficient UV-LED ink

    CMYK + White and Varnish

    Print directly on a variety of substrates up to 5.91 inches thick

    Small footprint, tabletop printer with removable bed

    Mutoh edition FlexiSign & Print RIP software

    UV/LED Local Dimming Technology

    Optional Vacuum table

    One year on-site limited warranty

  • Specifications

    Printing Systems On-demand piezo drive system

    Set Media

    Size (WxD) 19.02 in x 12.95 in

    Height

    up to 2.76 in (with standard table) | up to 5.9 in (w/o standard table)

    up to 2.76 in (with optional vacuum table)

    Weight

    up to 11.02 lbs. (w/standard table) | up to 17.64 lbs. (w/o standard table)

    up to 8.82 lbs. (with optional vacuum table)

    Max Printable Size (WxD) 19.02 in x 12.95 in

    Height Adjustment PG handle (handle 0.059 in / round)

    Ink

    Type UV-LED Ink (UH21 ink / US 11 ink)

    Ink Set 4 colors (C, M, Y, K) | 6 colors (C, M, Y, K, White, Varnish)

    Capacity 220ml ink cartridge (CMYK, White, Varnish)

    No. of slots 6

    Vacuum Table Optional

    Print Resolution 1440 / 1080 / 720 dpi (Total 3 modes)

    Interface Ethernet (10BASE-T / 100 BASE-TX)

    Power Requirements AC 100-120V± 10%, 50/60Hz ± 1Hz

    Operation Noise

    Standby: 51dB or less | Printing with standard table: 63dB or less

    Printing with optional vacuum table: 70dB or less

    Printable Environment Temperature: 68-89.6 °F | Humidity: 40-60%RH (non condensing)

    Power Consumption Sleep Mode: 20W or less | Ready to Print: 40W or less | Operation: 195W or less

    Dimensions

    (WxDxH) | Weight

    46.77 in x 38.27 in x 23.50 in (cover closed) | weight: 209.44 lbs.

    46.77 in x 38.27 in x 39.80 in (front cover opened)

    46.77x 40.35x 23.50 in (PG handle cover opened)

    Printer Driver Bundled

    RIP Software SAi FlexiSIGN & PRINT MUTOH Edition
