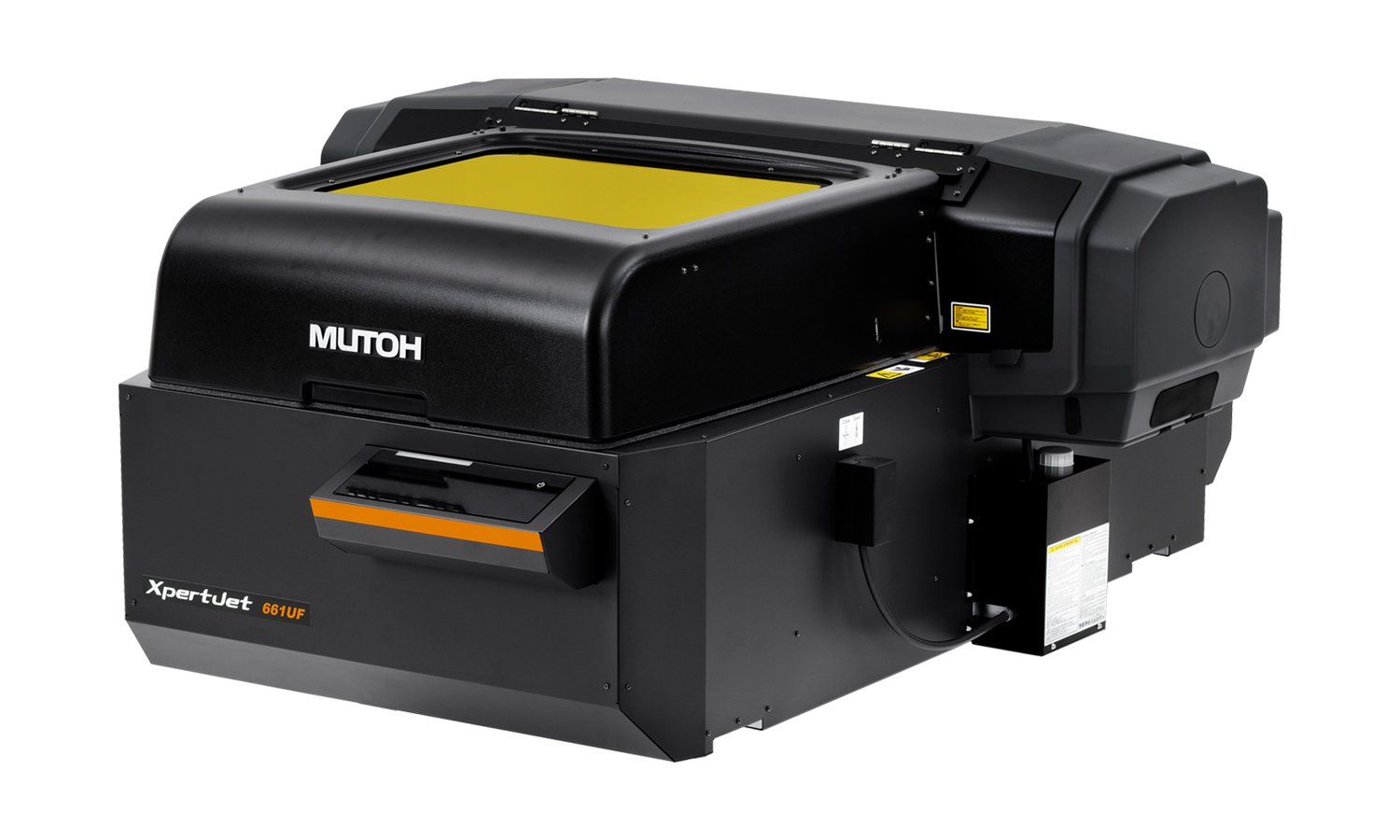

Mutoh XPJ-661UF UV Printer
Engineered in Japan for professional-grade desktop UV printing.
Print onto almost any object with the Mutoh XPJ-661UF, a compact UV printer designed for high-quality direct-to-object printing. Combining exceptional print quality with straightforward operation, making it an ideal solution for businesses looking to produce customised products efficiently.
Available in CMYK or CMYK + White + Varnish configurations, and with a bed size of 483x594mm, the XPJ-661UF enables full-colour printing along with premium effects such as layered white ink and spot gloss varnish. This allows businesses to produce eye-catching customised products including name badges, promotional products, awards, trophies, personalised gifts and industrial items.
Manufactured in Japan, Mutoh’s advanced UV LED technology combines
reliability
with
ease of use.
Small Format Flatbed UV Printing
Perfect for short-run production, product personalisation and promotional merchandise the Mutoh XPJ-661UF is designed for high-quality direct-to-object printing and versatility, delviering sharp detail, vibrant colour and excellent ink adhesion across a wide range of materials including plastics, metal, wood, acrylic, leather and more.
Mutoh XPJ-661UF Applications
Typical applications include:
- Name badges and ID cards
- Promotional products and branded merchandise
- Personalised gifts and keepsakes
- Awards and trophies
- Phone cases and small accessories
- Custom industrial panels and labels
With its user-friendly design and consistent output, the XPJ-661UF makes it easy for businesses to expand into UV flatbed printing and product customisation without complex setup or production processes.
Mutoh XPJ-661UF Features
Local Dimming Control
Create gloss, semi-gloss, and matte finishes in a single bed movement, increasing productivity and minimising the risk of dust contamination.
Braille and Tactile Printing
Easily print textures, patterns, raised icons, and braille to create unique finishes and depth.
Nozzle Area Select
If nozzles become clogged, turn them off and continue production with the remaining nozzles.
150mm Media Thickness
Lower the vacuum table in a single movement (no mid table) to print onto objects up to 150mm thick.
US11 Ink
GREENGUARD Gold certified ink has no VOCs (volatile organic compounds) and no HAPs (harmful air pollutants). There is no need to install an air filtration or extraction unit.
RIP Software
Driven by Mutoh's own award-winning, easy to use RIP software VerteLith.
Easily Print Compliant Braille
Take full advantage of MUTOH's UH21 ink using C, M, Y, K, + White + Varnish to quickly and easily print braille and raised icons. Print coloured braille, clear braille, or white braille.
Optional Rotary Unit
The option rotary unit enables the XPJ-661UF to perform a full 350-degree direct print onto cylindrical objects. Easy to operate it allows for printing onto cylindrical objects with a diameter from 30mm up to 120mm, width from 30mm up to 360mm, and max. weight of 1kg.
Mutoh XPJ-661UF Specifications
| Print method | Drop-on-demand Micro Piezo Inkjet Technology |
|---|---|
| Media Size | 483mm x 594mm |
| Media Height | 0-150mm |
| Media Weight | 6kg |
| Max printable size (W x D) | 483mm x 594mm |
| Height adjustment | Automatic |
| Standard attached table | Vacuum table |
| Ink Type | LED - UV ink (US11 ink /UH21 ink) |
| Ink Set | 4 colours (C, M, Y, K) / 6 colours (C,M,Y,K, white, varnish) |
| Ink Capacity | 220ml ink cartridge (C,M,Y,K, white, varnish) |
| No. Ink Slots | 6 |
| Print resolution | 1440/1080/720dpi (Total 6 modes) |
| Interface | Ethernet (10BASE-T/100BASE-TX) |
| Power Requirements | AC100-120V±10%, 50/60Hz±1Hz |
| Operation Noise | Standby: 50dB or less Printing with vacuum table:70dB or less |
| Printable environment | Temperature：20~32℃ Humidity: 40-60%RH (non condensing) |
| Electrical power consumption | Sleep mode: 20W or less Ready to print: 40W or less Operation: 300W or less |
| Dimensions (WxDxH) | 1188 x 1672 x 604mm (Front cover closed) 1188 x 1672 x 1196mm (Front cover opened) |
| Weight | 130kg |
| Packing size (WxDxH) | 1365x1775x1150mm /205kg (with stand) |
| Printer Driver | Bundled |
| RIP software | VerteLith |
| Rotary Jig | Optional |

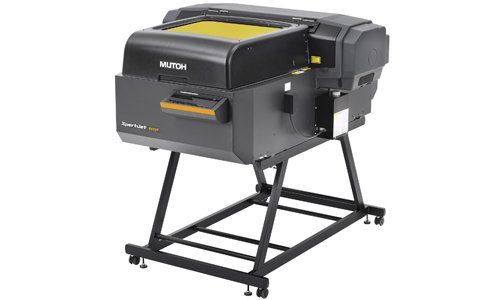

| Stand | Included |
