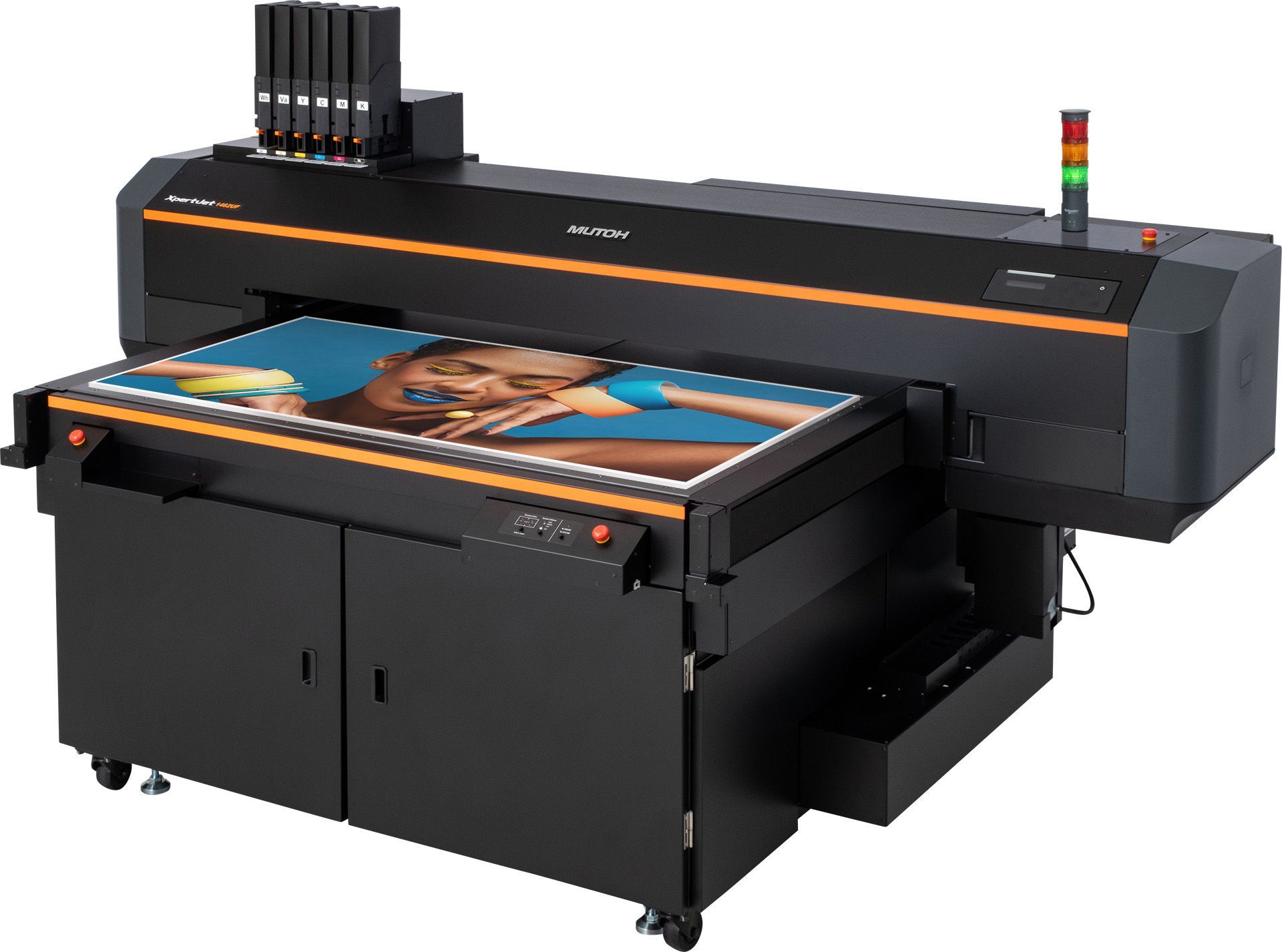

Mutoh XPJ-1462UF UV Printer
Engineered in Japan for professional-grade flatbed UV printing.
Designed for businesses that need both scale and precision, the Mutoh XPJ-1462UF combines a generous print area of 1420x700mm and two print heads delivering exceptional image quality, making it ideal for producing high-impact work efficiently and consistently.
Configured with CMYK + White + Varnish, you can create standout results with rich colour, layered white for dark or transparent materials, and gloss or textured varnish effects creating opportunities for premium applications such as braille signage, interior décor, branded merchandise, awards, control panels and industrial components.
Built in Japan, Mutoh’s UV LED technology delivers dependable performance with minimal maintenance. Fast start-up times, straightforward operation and consistent output make the XPJ-1462UF a smart investment for businesses looking to expand into UV printing or scale up their existing production with confidence.
Direct-to-Object UV Production
Engineered for true versatility, the XPJ-1462UF prints directly onto a wide variety of rigid and irregular substrates including acrylic, timber, metal, plastics, glass and more. Whether you’re producing one-off customised pieces or batching multiple jobs at once, the large bed size allows you to maximise throughput without compromising detail or colour accuracy.
Mutoh XPJ-1462UF Applications
Typical applications include:
- Promotional products and branded merchandise
- Personalised gifts and keepsakes
- Signage
- Braille and Tactile Signage
- Awards and trophies
- Phone cases and accessories
- Custom industrial panels and labels
With its user-friendly design and consistent output, the XPJ-1462UF makes it easy for businesses to expand into true production UV flatbed printing and product customisation without complex setup or production processes.
Mutoh XPJ-1462UF Features
Local Dimming Control
Create gloss, semi-gloss, and matte finishes in a single bed movement, increasing productivity and minimising the risk of dust contamination.
Braille and Tactile Printing
Easily print textures, patterns, raised icons, and braille to create unique finishes and depth.
Nozzle Area Select
If nozzles become clogged, turn them off and continue production with the remaining nozzles.
150mm Media Thickness
Lower the vacuum table in a single movement (no mid table) to print onto objects up to 150mm thick.
US21 Ink
Superior chemical resistance especially against gasoline, acetone and IPA. Ideal for printing tactile icons, textures, and compliant braille.
RIP Software
Driven by Mutoh's own award-winning, easy to use RIP software VerteLith.
Quick Easily Compliant Braille
Take full advantage of MUTOH's XPJ-1642UF and UH21 ink using C, M, Y, K, + White + Varnish to quickly and easily print braille and raised icons. Print coloured braille, clear braille, or white braille.
Mutoh XPJ-1462UF Specifications
| Print method | On-demand piezo drive system |
|---|---|
| Number of heads | 2 (staggered) |
| Nozzles | 180 nozzles x 8 lines x 2 |
| Ink | UV LED ink (UH21) |
| Ink Capacity | 800ml bag / 500ml bag (UH21 white only) |
| Configuration | CMYK+Wh+Va |
| Printable Area | 1,420mm x 700mm |
| Supported Media Size | 1,420mm x 700mm |
| Max. Media Height | 150mm |
| Max. Media Weight | 50kg/m2 |
| Head Height Adjustment | Automatic |
| Max. Resolution | 1440 x 1440 dpi |
| Interface | GB-Ethernet (1000BASE-T) |
| Dimensions WxDxH | 2,770 x 1,459 x 1,339mm |
| Weight | 500kg |
| Power supply | Voltage: AC 200V～240V ±10% / Frequency: 50/60Hz ±1Hz / At least 6A |
| Operational environment | Temperature: 20℃～32℃ Humidity: 40%～60% No condensing |
| Accuracy guaranteed | Temperature: 22℃～30℃ Humidity: 40%～60% No condensing |
| Power consumption during operation | AC200V～240V: 1030W or less |
| Power consumption sleep mode | AC200V～240V: 44W or less |
| RIP software | VerteLith |
